CRVT
Removable roller bar, which is installed at front of bolster. Easy to carry dies in and out.
| ① | Maximum load |
| ② | Effective length B（mm） |
| ③ | Surface finishing No symbol : Black coating P : Paint |
| ④ | Standard : No symbol Option : Z（n） |
| Type | CRVT-15-350 | CRVT-40-430 | CRVT-100-550 | |
| Max. load weight | N
kg |
1470
150 |
3920
400 |
9800
1000 |
| Effective length | mm | 350 | 430 | 550 |
| Bar weight | kg | 4 | 9 | 13 |
| Type | CRVT-120-720 | CRVT-150-640 | CRVT-100-900 | |
| Max. load weight | N
kg |
11760
1200 |
14700
1500 |
9800
1000 |
| Effective length | mm | 720 | 640 | 900 |
| Bar weight | kg | 22 | 20 | 25 |

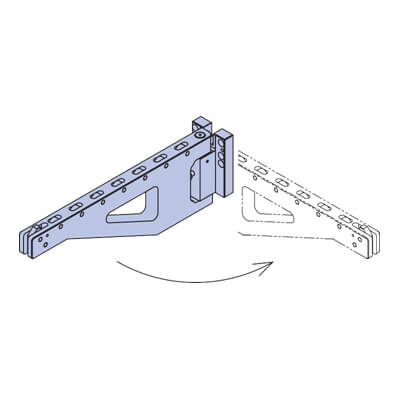

CRH
CRH Horizontal fold type
Easy to handle and horizontal storage is capable regardless of the floor height

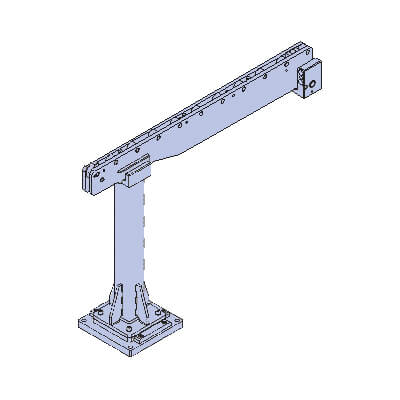

CRS
CRS Removable straight bar with pillar
Suitable for big and heavy dies No limit of the bar length

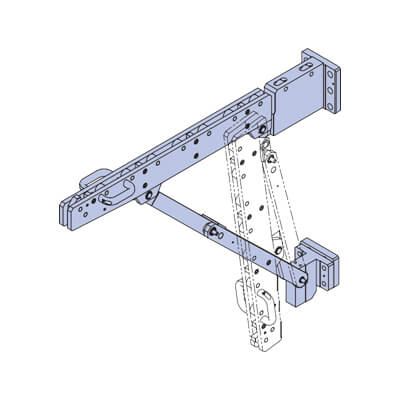

CRD
CRD Vertical fold with supporting stay
Suitable for medium and heavy die weight Vertical storage is capable
Support Stay is provided
