Description
MODEL TA – MODEL SELECTION

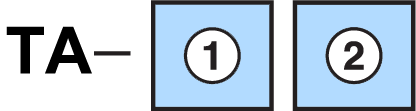

| ① | ② |
|---|---|
| Capacity of clamp : 1~25(25tons) | EMPTY: Standard type C:Pneumatic cylinder movable type B:Fixed type V:Temperature -resisting type |

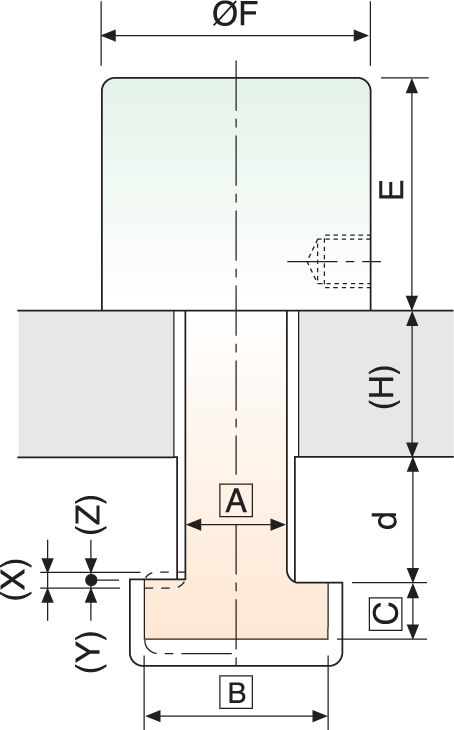

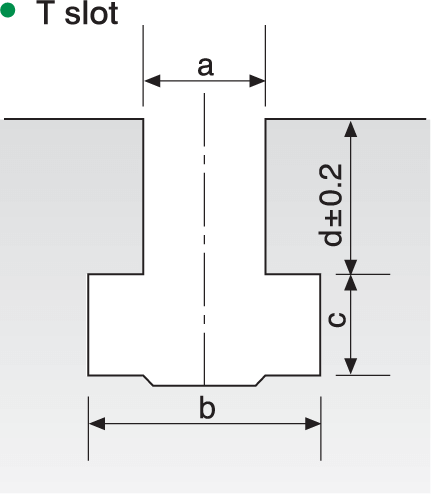

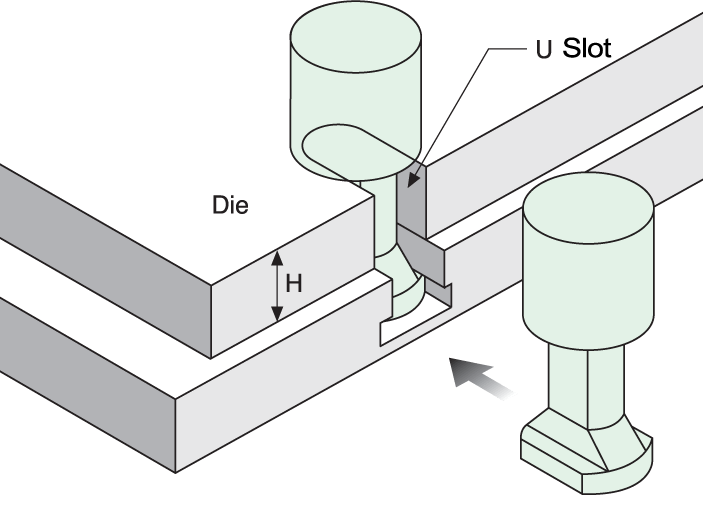

| MODEL | ØF | E | ØG | ØJ | max. H+d | max. L | max. a | k | p |
| TA-1 | 44 | 48 | 12 | 34 | 60 | 12 | 8 | 13.5 | PT1/8 |
| TA-2 | 53 | 52 | 16 | 48 | 80 | 17 | 12 | 12 | |
| TA-4 | 65 | 58 | 23 | 58 | 90 | 20 | 16 | 15 | PT1/4 |
| TA-6 | 82 | 65 | 30 | 64 | 100 | 25 | 18 | 15 | |
| TA-10 | 99 | 71 | 38 | 78 | 110 | 30 | 22 | 15 | |
| TA-16 | 126 | 82 | 45 | 88 | 120 | 38 | 28 | 17 | |
| TA-25 | 150 | 100 | 55 | 98 | 140 | 45 | 36 | 23 |
