Description

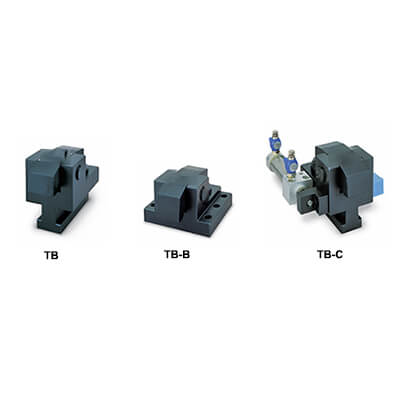

MODEL TB – MODEL SELECTION

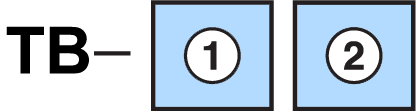

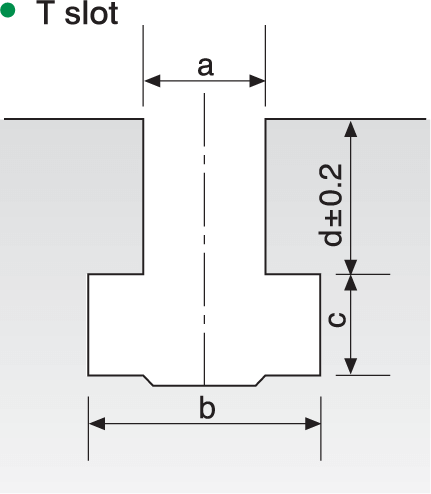

| ① | ② |
|---|---|
| Capacity of clamp :1~25(25tons) | EMPTY: Standard type C: Pneumatic cylinder movable type B: Fixed type V: Temperature -resisting type |
| MODEL | L | K | J | min.(H) | min. E | F | G | min. a | min. C | P |
| TB-1 | 74.5 | 60 | 14.5 | 25 | 55 | 44 | 20 | 10 | 6.5 | 1/8PT |
| TB-2 | 110 | 90 | 20 | 25 | 73 | 68 | 32 | 14 | 10 | 1/4PT |
| TB-4 | 134 | 110 | 24 | 25 | 77 | 79 | 40 | 18 | 12 | |
| TB-6 | 159 | 130 | 29 | 30 | 92 | 96 | 46 | 22 | 14 | |
| TB-10 | 189 | 159 | 30 | 40 | 114 | 117 | 54 | 24 | 16 | |
| TB-16 | 230 | 200 | 30 | 40 | 126 | 129 | 58 | 28 | 20 | |
| TA-25 | 265 | 235 | 30 | 45 | 148 | 156 | 70 | 36 | 23 |
